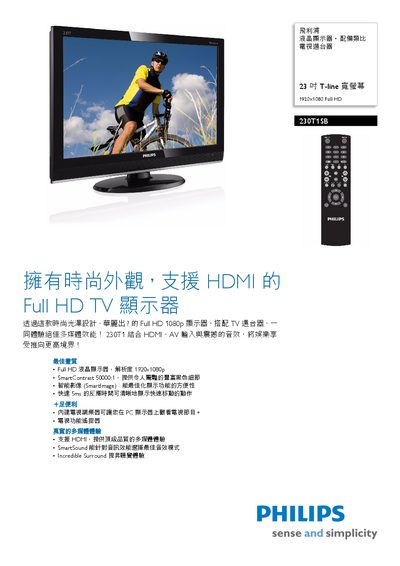

The 230T1SB is a 23-inch T-line wide screen 1920x1080 full HD LCD display from Philips. It has a stylish appearance and an integrated TV tuner that allows you to watch TV on your PC monitor. The 230T1SB supports HDMI, providing a top-quality multimedia experience.
This manual describes the Philips 230T1SB 23‑inch Full HD LCD monitor, highlighting its SmartContrast 50000:1, 5 ms response time, built‑in analog TV tuner, and audio features such as SmartSound and Incredible Surround. It also explains the on‑screen display functions and user‑friendly controls.
The document lists detailed technical specifications, including resolution, brightness, viewing angles, power consumption, and connector types (HDMI, VGA, AV, CVBS, YPbPr, audio in/out). Installation guidance covers VESA mounting, power settings, and accessory contents. This manual is written in Chinese.
| Screen size | 23 inches (58.42 cm) |
|---|---|
| Resolution | 1920 × 1080 (Full HD) |
| Brightness | 300 cd/m² |
| Contrast ratio (SmartContrast) | 50000:1 |
| Response time | 5 ms |
| Viewing angle | 170° horizontal / 160° vertical |
| Power consumption (standby) | 0.5 W |
| Audio output power | 2 × 3 W RMS |
| VESA mount | 100 mm × 100 mm |
| Input connectors | HDMI, VGA (analog), AV, CVBS, YPbPr, audio in/out |
The display has a Full HD resolution of 1920 × 1080 pixels.
Yes, the monitor is equipped with an analog TV tuner.
The display’s response time is 5 ms.
It delivers 2 × 3 W RMS audio output power.
