AMDG-X/E601 series motor protection is a product produced by Shenyang Xinwei Automation Co., Ltd. This product has the protection functions of phase loss, short circuit, grounding, stalling, overload and unbalanced current. It is suitable for three-phase AC motors with a voltage not exceeding 1140V and a frequency of 50Hz or 60Hz.
The AMDG‑X/E601 series motor protector from XWAM provides comprehensive protection for three‑phase AC motors up to 355 kW. It uses a DSP core with digital settings and display, offering functions such as phase loss, short‑circuit, ground fault, stall, overload and current imbalance protection.

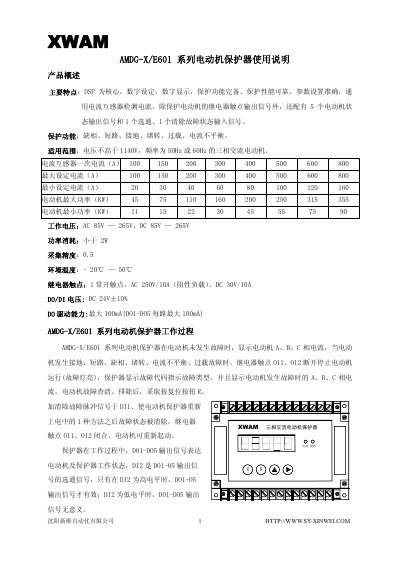

The manual explains how to configure parameters, interpret fault codes, connect the device to PLC/DCS systems, and install the unit. Detailed wiring diagrams, signal tables and PLC I/O mapping are included to help integrate the protector into control systems. This manual is written in Chinese.
| Working Voltage (AC) | 85 V – 265 V |
|---|---|
| Working Voltage (DC) | 85 V – 265 V |
| Power Consumption | < 2 W |
| Measurement Accuracy | 0.5 |
| Operating Temperature | -20 °C – 50 °C |
| Relay Contact Rating | 1 NO, AC 250 V/10 A (resistive), DC 30 V/10 A |
| DO Voltage | DC 24 V ± 10 % |
| DO Drive Capability | Max 100 mA per channel |
| Current Transformer Primary Current Options | 100 A, 150 A, 200 A, 300 A, 400 A, 500 A, 600 A, 800 A |
| Maximum Motor Power | 45 kW – 355 kW |
Press the R key to reset; the controller re‑initialises and the motor stops.
EE03 indicates a phase‑loss (missing phase) fault.
L and N terminals connect to the AC 220 V power supply.
