AMDG-X/E621 series motor protection is a motor protection device with DSP as the core, which has functions of phase loss, short circuit, grounding, stalling, overload, unbalanced current and underload. It is suitable for three-phase AC motors with a voltage not exceeding 1140V and a frequency of 50Hz or 60Hz.
The AMDG‑X/E621 series motor protector from XWAM provides comprehensive protection for three‑phase AC motors up to 1140 V and 50/60 Hz. It uses a DSP core, digital settings and a 5‑digit LED display to show motor currents, parameters and fault codes.

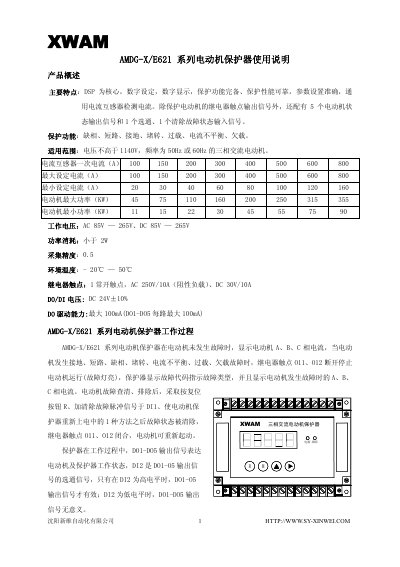

The manual describes operation, parameter configuration, fault codes, wiring diagrams and PLC/DCS communication, as well as installation dimensions and mounting instructions. This manual is written in Chinese.
| Working voltage | AC 85‑265 V, DC 85‑265 V |
|---|---|
| Power consumption | < 2 W |
| Measurement accuracy | 0.5 |
| Operating temperature | -20 °C to 50 °C |
| Relay contact rating | 1 NO contact, AC 250 V/10 A (resistive), DC 30 V/10 A |
| DO/DI voltage | DC 24 V ±10 % |
| DO drive capacity | max 100 mA per channel (DO1‑DO5) |
| Primary current transformer rating | 100 A – 800 A (selectable) |
EE01 indicates a ground fault.
The factory default B parameter is 0000, which disables self‑reset.
The relay has one normally‑open contact rated AC 250 V/10 A (resistive) and DC 30 V/10 A.
