AMDP-X/E701 series motor protection is a digital motor protection device with DSP as the core. It has six protection functions of phase loss, short circuit, ground fault, stalling, overload and unbalanced current. It is suitable for three-phase AC motors.
The AMDP‑X/E701 series motor protection device from XWAM protects three‑phase AC motors up to 1140 V. It features a DSP core, digital settings, a 5‑digit LED display, multiple fault outputs, and 4‑20 mA analog outputs. The device supports protection functions such as phase loss, short‑circuit, ground fault, jam, overload and current imbalance.

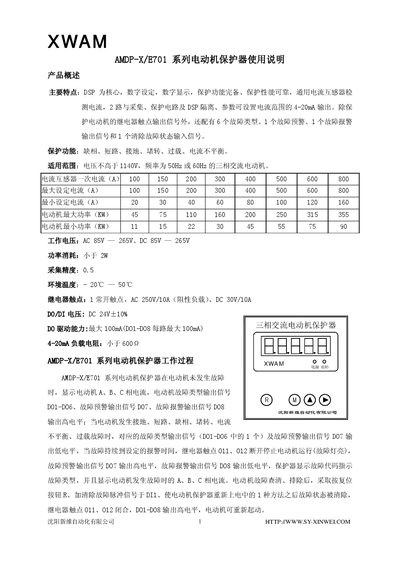

The manual describes the wiring of the main unit, relay contacts (011, 012), DO/DI terminals, and connection to current transformers. It also explains how to set parameters, interpret fault codes (EE01‑EE06), and reset the device using the R key or a clear‑fault pulse on DI1. Diagrams for PLC integration and electrical schematics are included. This manual is written in Chinese.
| 功率消耗 | < 2 W |
|---|---|
| 采集精度 | 0.5 |
| DO 驱动能力 | 最大 100 mA 每路 |
Press the R key to reset, which re‑initialises the controller and stops the motor, or send a clear‑fault pulse to DI1.
The relay contacts are connected to terminals 011 and 012; they close when the motor is running normally and open when a fault occurs.
