The AMDG-X/F601 series motor protection is a three-phase AC motor protection device from the Xinwei Automation Company in Shenyang. It has functions such as undervoltage protection, short circuit protection, grounding protection, stalling protection, overload protection, and unbalanced current protection. It is suitable for three-phase AC motors with a voltage of no more than 1140V and a frequency of 50Hz or 60Hz.
The AMDG‑X/F601 series is a three‑phase motor protector with DSP‑based digital settings and display. It monitors voltage and current, provides five motor status outputs and one fault‑clear input, and protects against lack‑of‑phase, short‑circuit, ground fault, jam, overload and current imbalance.

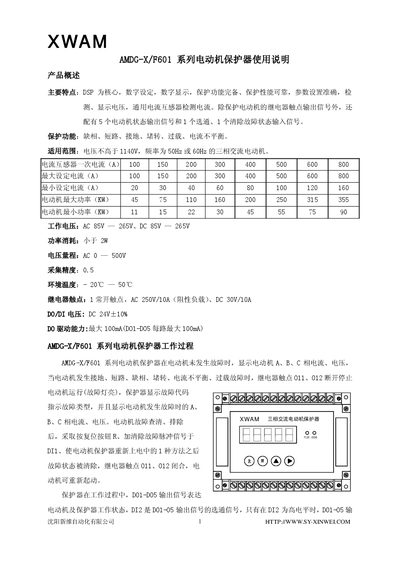

The manual explains how to configure parameters, interpret fault codes, connect the device to PLC/DCS systems, and perform wiring. It also details the LED display, keypad functions, relay contact ratings, and the required connections for current transformers and power supply. This manual is written in Chinese.
| 功率消耗 | < 2 W |
|---|---|
| 采集精度 | 0.5 |
| 环境温度范围 | -20 °C ~ 50 °C |
| DO/DI 电压 | DC 24 V ± 10 % |
| DO 驱动能力 | 最大 100 mA (每路) |
| 电流互感器一次电流范围 | 100‑800 A |
It protects against lack‑of‑phase, short‑circuit, ground fault, jam, overload and current imbalance.
Press the R key; this re‑initialises the microcontroller, stops the motor and clears the fault state.
