The Philips Portable DVD Player PET944 offers exceptional picture quality with its high-density (800x480) pixel LCD display, allowing you to enjoy movies and more on the go. It is compatible with various disc formats and supports MP3/WMA-CD, CD, and CD-RW for music playback, as well as viewing JPEG images from photo discs. With a 9-inch rotating screen and up to 6 hours of playback time, it provides easy photo display and convenient operation with additional touch buttons.
The Philips PET944 is a compact portable DVD machine featuring a high‑density 800×480 pixel LCD screen that swivels 180°, a battery that delivers up to 6 hours of playback, and support for a wide range of disc and audio formats. It includes built‑in speakers, headphone output, and an AV composite video output for flexible use.

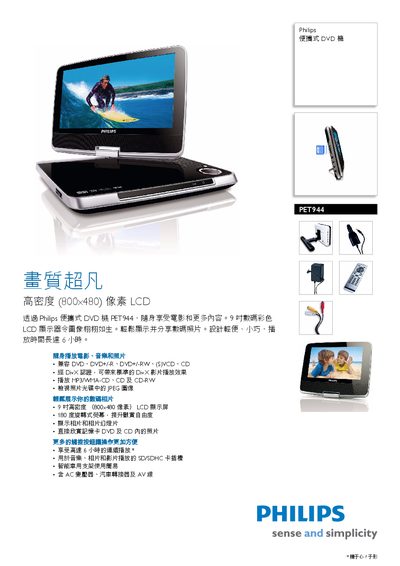

This manual covers the device’s technical specifications, supported media formats, audio and video playback capabilities, power requirements, and a list of accessories. It also provides step‑by‑step operating instructions and safety information for optimal use. This manual is written in Chinese.
| LCD resolution | 800×480 pixels |
|---|---|
| LCD type | LCD TFT |
| Brightness | 200 cd/m² |
| Contrast ratio | 250:1 |
| Screen swivel | 180° |
| Audio output power | 600 mV RMS |
| Headphone output power | 5 mV RMS |
| Signal‑to‑noise ratio | >80 dB (earphone), >62 dB (internal) |
| Battery playback time | 6 hours |
| DC input | 9 V / 1.5 A |
| Dimensions (W×H×D) | 238 mm × 32 mm × 175 mm |
| Weight | 1.2 kg |
| Supported disc formats | DVD, CD, VCD, SVCD, DVD+R, DVD+RW, CD‑R, CD‑RW, MP3‑CD, WMA |
It supports DVD, CD, VCD, SVCD, DVD+R, DVD+RW, CD‑R, CD‑RW, MP3‑CD and WMA formats.
The device provides up to 6 hours of continuous playback on battery power.
It requires a DC input of 9 V at 1.5 A.
The LCD screen is a TFT type with a resolution of 800 × 480 pixels.
