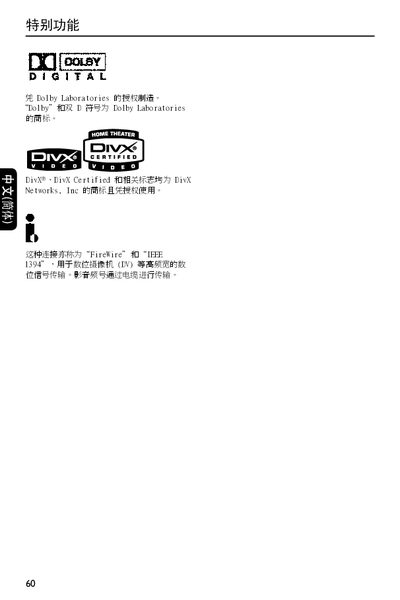

This document introduces a special function product manufactured under the authorization of Dolby Laboratories, which supports high-frequency wide digital signal transmission and DV format connection. The product can be recorded using DVD±R and DVD±RW discs, with a disc capacity of 4.7GB, and is compatible with different recording modes and quality levels. Additionally, the product features title and chapter functions, and supports disc finalization. It allows copying from external VHS tapes or DVDs that are not protected by copyright.
This manual provides step‑by‑step instructions for setting up the Philips DVD Recorder, including antenna, video, audio and digital connections. It covers basic functions such as recording TV programs, copying from DV camcorders, and playing back various disc formats.
Additional sections describe recording quality options, disc finalisation, title and chapter editing, system menus, and safety precautions. A full specifications table and troubleshooting guide are included for reference. This manual is written in Chinese.
| Aspect Ratio | 4:3, 16:9 |
|---|---|
| Video D/A Converter | 10 bit, 54 MHz |
| Audio D/A Converter | 24 bit, 96 kHz |
| Power Supply | 110–240V~, 50‑60 Hz |
| Power Consumption | 28 W (normal), <4 W standby |
| Dimensions | 435 × 53 × 300 mm |
Only DVD±R and DVD±RW discs can be used for recording.
Use a microfiber cleaning cloth and wipe from the centre outward; do not use solvents or cleaning discs.
Finalisation locks a DVD±R disc so it can be played on other DVD players; it is not required for DVD±RW.
