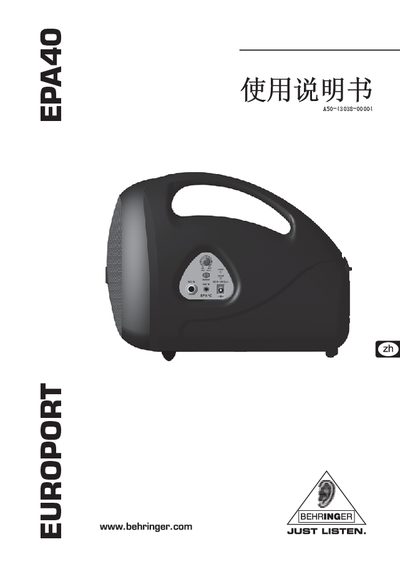

This manual introduces EPA40 portable sound system, including product features, usage methods, precautions, etc.
This manual begins with important safety warnings, emphasizing the need to avoid electric shock, keep the unit dry, and only allow qualified technicians to perform repairs. It also outlines proper handling of the built‑in battery, charging procedures, and environmental precautions.
The guide then describes the unit’s components and connections, including speaker, microphone, power switch, charging indicator, and input/output ports. Technical data such as power output, speaker size, battery capacity, charging time, and dimensions are listed, along with instructions for first‑time use and registration with BEHRINGER. This manual is written in Chinese.
| MIC IN connector | 6.3 mm unbalanced |
|---|---|
| LINE IN connector | 3.5 mm unbalanced |
| Output power | 40 W |
| Speaker unit | 5‑inch full‑range |
| Microphone supplied | BEHRINGER XM1800S dynamic super‑cardioid |
| Battery type | 12 V DC, 2600 mAh |
| Charging time | ≈ 4 h |
| Battery runtime | up to 8 h |
| External charger | 18 V DC / 3 A |
| Power input voltage | 100‑240 V ~ 50/60 Hz, 1.5 A |
| Dimensions (H×W×D) | ≈ 217 mm × 180 mm × 284 mm |
| Weight (without adapter) | ≈ 2.6 kg |
It takes about four hours to fully charge the battery.
The unit can deliver up to 40 W of output power.
A BEHRINGER XM1800S dynamic super‑cardioid microphone is supplied.
No, only qualified service personnel may open or repair the unit.
