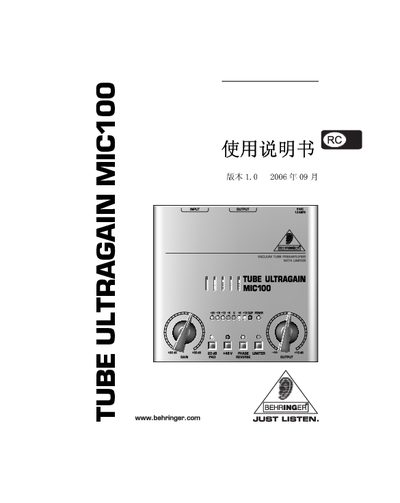

TUBE ULTRAGAIN MIC100 user manual introduces the product's safety instructions, detailed safety instructions, installation and use instructions, etc.
The MIC100 is a professional tube‑based microphone preamplifier designed for studio, stage and live‑sound applications. It offers a 12AX7 vacuum tube, selectable gain, phantom power, phase reversal and a built‑in limiter.
This user manual covers safety warnings, detailed descriptions of the front‑panel controls and rear‑panel connectors, wiring diagrams for various setups, and the full technical data sheet. It also explains registration, warranty information and how to obtain service support. This manual is written in Chinese.
| Maximum XLR input level | +7 dBu (with 20 dB attenuation) |
|---|---|
| Maximum 6.3 mm input level | +16 dBu (with 20 dB attenuation) |
| Microphone input frequency response | 10 Hz – 43 kHz (±3 dB) |
| Line input frequency response | 10 Hz – 40 kHz (±3 dB) |
| Gain control range | +26 dB to +60 dB |
| Output level control range | -∞ dB to +10 dB |
