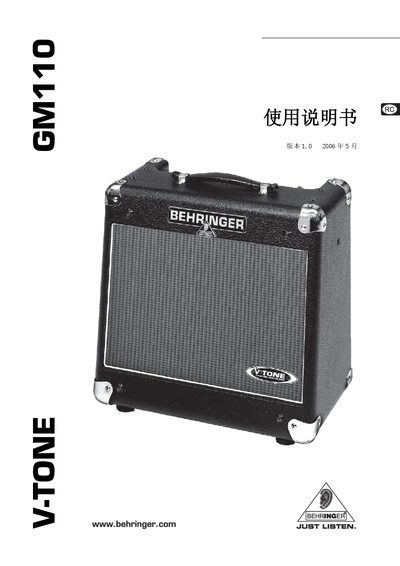

This document is the user manual for V-TONE GM110, providing important safety instructions and usage guide for the power switch.
This manual introduces the V‑TONE GM110 guitar workstation, covering safety precautions, power and voltage settings, and recommended operating environments. It explains how to register the product with Behringer and where to obtain warranty service.
The guide details each control element on the front and rear panels, explains the function of input, output, and effects connections, and lists the technical specifications such as jack types, impedances, power requirements, dimensions, and weight. Proper grounding and fuse replacement procedures are also described. This manual is written in Chinese.
| Input jack type | 6.3 mm mono |
|---|---|
| Input impedance | ≈1 MΩ (non‑balanced) |
| Output impedance | ≈100 Ω (non‑balanced) |
| Maximum D.I. Out level | +22 dBu |
| External speaker impedance | 4 Ω |
| Maximum load power | 70 W |
| Dimensions (H × W × D) | ≈15 in × 14 in × 9 in (381 × 369 × 242 mm) |
| Weight | ≈12.5 kg |
| Supported power voltages | 120 V / 60 Hz (US/CA), 220 V / 50 Hz (CN/KR), 230 V / 50 Hz (EU/UK/AU), 100 V / 50‑60 Hz (JP) |
| Fuse rating | T2 250 V, 2 A (120 V) / T1 250 V, 1 A (240 V) |
The GM110 uses a 6.3 mm mono input jack.
External speakers should have a 4 Ω impedance.
The D.I. Out can deliver up to +22 dBu.
It can be used with 120 V / 60 Hz (US/CA), 220 V / 50 Hz (CN/KR), 230 V / 50 Hz (EU/UK/AU), or 100 V / 50‑60 Hz (JP).
