Cisco Aironet 1250 Series Wireless Access Points are the industry's first enterprise-class access points based on the IEEE 802.11n Draft 2.0 standard. They provide reliable and predictable WLAN coverage to improve the end-user experience for existing 802.11a/b/g clients and new 802.11n clients. The access points deliver up to 600 Mbps of aggregate data throughput to meet the most demanding bandwidth requirements. Users now can get a wired-like experience with wireless and move about to access high-bandwidth data, voice, and video applications from anywhere.
The Cisco Aironet 1250 series is an enterprise‑grade wireless access point built to the IEEE 802.11n Draft 2.0 standard. It offers up to 600 Mbps aggregate data rate, modular hardware for field upgrades, and a rugged metal enclosure suitable for harsh indoor environments such as factories, warehouses and retail stores.

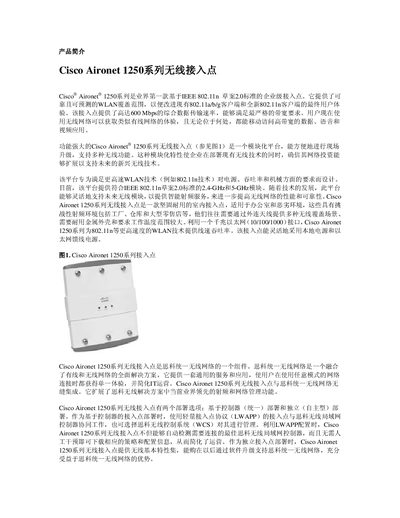

The manual covers key features such as MIMO technology, RF management, security protocols, detailed product specifications, power options (local supply or PoE), and a list of part numbers for radios, antennas and power injectors. It also includes regulatory compliance information and service‑support contacts. This manual is written in Chinese.
| Maximum aggregate data rate | 600 Mbps |
|---|---|
| Physical dimensions (W×L×H) | 8.12 × 9.52 × 2.11 inches |
| Weight (AP only) | 5.1 lb (2.31 kg) |
| Operating temperature range | -4 °F to 131 °F (‑20 °C to 55 °C) |
| Power input | 100‑240 VAC (or PoE 802.3af) |
It supports IEEE 802.11a, b, g and the 802.11n Draft 2.0 standard on both 2.4 GHz and 5 GHz bands.
The access point supports WPA, WPA2 (802.11i), 802.1X, AES‑CCMP, TKIP, and multiple EAP types such as PEAP, EAP‑TLS and LEAP.
