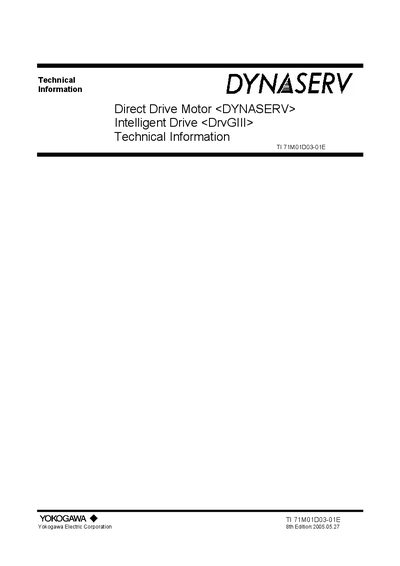

This document provides information about DYNASERV, a direct drive servo motor.
This manual provides detailed technical information about the DYNASERV direct‑drive servo motor, including its functions, specifications, and recommended operating procedures. It is intended for end users, integrators, and service personnel who need to install, configure, and maintain the motor.
The document emphasizes safety, covering hazards such as high‑voltage exposure, proper grounding, clearance requirements, and restrictions on modifications. It also includes installation notes, cable handling guidelines, and revision history for the product.
| Minimum cable bend radius | 50 mm or more |
|---|---|
| Load‑to‑motor surface clearance | 1 mm or more |
| Maximum screw penetration depth | less than 8 mm |
The cable bend radius must be 50 mm or greater.
A clearance of at least 1 mm is required.
