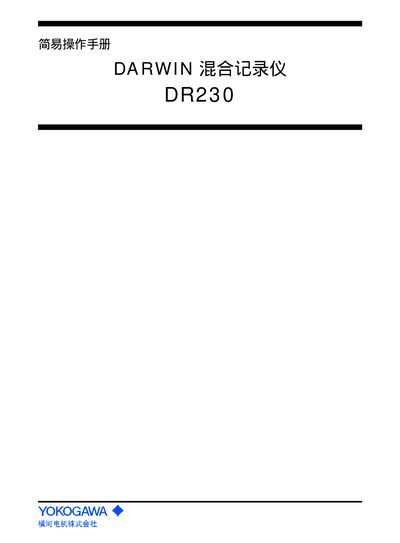

DARWIN Hybrid recorder DR230 simple operation manual, introduces the basic operation of the recorder, the composition system, date/time setting, display screen setting, test cycle (SCAN) setting, range setting, unit setting, paper speed setting, record start/stop and other contents.
This manual describes the basic operation of the DR230 Mix Recorder, including power‑on procedures, system configuration, date/time setting, display options, scan interval, range, unit, and paper‑speed adjustments. It also covers how to start and stop recording, as well as how to configure zones, tags, alarms, and report headers.
Additional sections explain how to set digital recording channels, choose recording modes (trend or logging), adjust A/D integration time, and perform manual or automatic printing of recorded data. Contact information for Yokogawa worldwide service centers is provided at the end of the document. This manual is written in Chinese.
Select ZONE, then use the cursor keys to set the recording range for each channel in millimetres and confirm.
Press and hold the power‑on key to enter setup, then select SCAN_INTVL and choose the desired interval.
