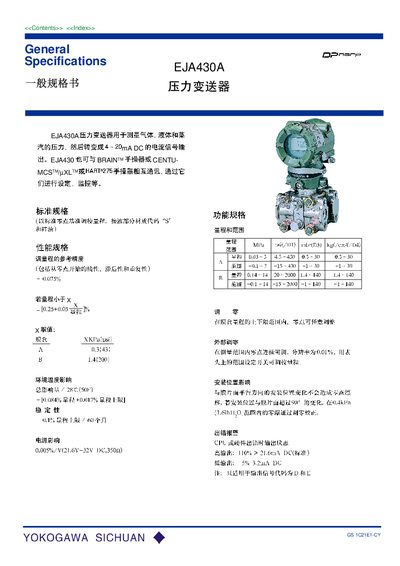

This document is a general specification for the EJA430A model, describing the features and characteristics of the product.
This manual covers the general description, performance specifications, and physical characteristics of the Yokogawa EJA430A pressure transmitter. It includes details on measurement range, accuracy, output signal, power requirements, and material construction.
Installation instructions, wiring diagrams, and communication options (BRAIN, HART) are provided, along with environmental limits and mounting recommendations to ensure reliable operation in industrial settings. This manual is written in Japanese.
| Measurement range | 0.03‑3 MPa (0.3‑30 kgf/cm²) |
|---|---|
| Output signal | 4‑20 mA DC |
| Weight | 3.9 kg (8.6 lb) |
The transmitter provides a 4‑20 mA DC output signal.
It measures pressures from 0.03 MPa to 3 MPa (0.3‑30 kgf/cm²).
