The CA150 is a multi-function handheld calibrator produced by Yokogawa. It can simultaneously generate and measure voltage, current, resistance, temperature, frequency and pulse. It has high precision and multiple functions, which can meet various calibration and inspection needs.
The CA150 is a handheld calibrator designed for maintenance and field calibration of process instruments. It can generate and measure DC voltage, DC current, resistance, thermocouples, RTDs and pulse signals, reducing the need for multiple devices.

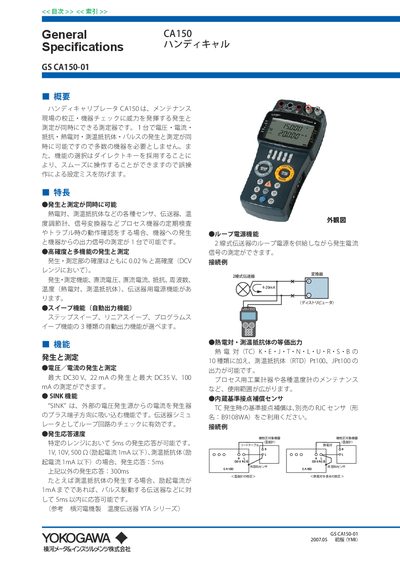

The manual includes specifications, connection examples with various sensors and transmitters, memory and communication functions, as well as a list of optional accessories. This manual is written in Japanese.
| Maximum DC voltage generation | 30 V |
|---|---|
| Maximum DC current generation | 22 mA |
| Pulse generation frequency range | 1 Hz – 50 kHz |
The CA150 can generate up to 30 V DC.
It can generate pulse signals from 1 Hz up to 50 kHz.
Yes, the SINK function can absorb current from an external voltage source into the positive terminal of the generator.
Yes, the data memory function allows saving displayed measurement (generation) data.
