The Bosch LCD Flat Monitor is a high-resolution color monitor that is ideal for analog video, digital video recorder (DVR) and PC applications. The monitor features a color liquid crystal display (LCD) providing 8.4-inch and 10.4-inch viewable image. Each monitor features wide horizontal and vertical viewing angles for clear, comfortable viewing whether placed on a desktop or mounted on a wall or rack.

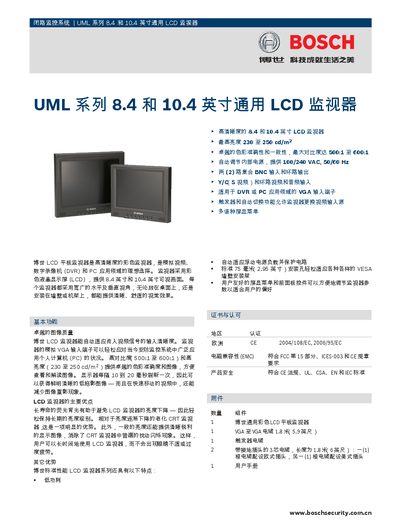

This manual describes the Bosch UML series LCD monitors, available in 8.4‑inch (UML-080-90) and 10.4‑inch (UML-100-90) sizes. It covers the display features, electrical requirements, connector options, and mounting instructions for use in CCTV, DVR, and PC applications.
The document also lists certification information, ordering details, and accessories such as VESA mounting brackets. Technical specifications such as brightness, contrast, viewing angle, power consumption, and environmental limits are provided for quick reference. This manual is written in Chinese.
| Resolution | 800 × 600 pixels |
|---|---|
| Contrast ratio | 500:1 (10.4") to 600:1 (8.4") |
| Brightness | 230 cd/m² (10.4") to 250 cd/m² (8.4") |
| Viewing angle | 160° × 140° (horizontal × vertical) |
| Power consumption | < 35 W |
| Input voltage | 100‑240 VAC, 50/60 Hz |
| Operating temperature | 0 °C to 45 °C |
Each monitor consumes less than 35 W at rated voltage.
