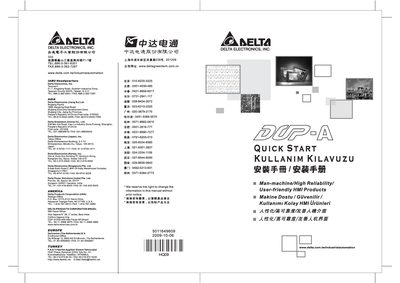

This document provides a quick start guide for the installation, wiring, and inspection of DELTA's DOP-A, AE, and AS series products. Before using the product, please read this quick start guide to ensure correct use and thoroughly understand all safety precautions. Keep this quick start guide in a safe location for future reference.
This quick start guide provides essential information for installing, wiring and inspecting Delta's DOP‑A, AE and AS series Human‑Machine Interfaces. It includes safety precautions, grounding requirements, mounting instructions and basic inspection steps to ensure reliable operation.
The document also lists key technical specifications such as display type, resolution, operating voltage, backup battery and communication ports, helping users verify that the HMI meets the requirements of their control system.
| Display Type | 3.5" TFT LCD (65536 colors) |
|---|---|
| Resolution | 320 x 240 pixels |
| Operation Voltage | DC +24V (-10% ~ +15%) |
| Backup Battery | 3V lithium CR2032, 5‑year life |
| Safety Approval | IP65 / NEMA4 / CE, UL |
Ground resistance should not exceed 100 Ω.
Screws must be tightened to less than 0.7 N·m (6.17 lb‑in).
Wait at least 10 minutes after power has been removed.
The HMI operates on DC +24 V with a tolerance of –10 % to +15 %.
