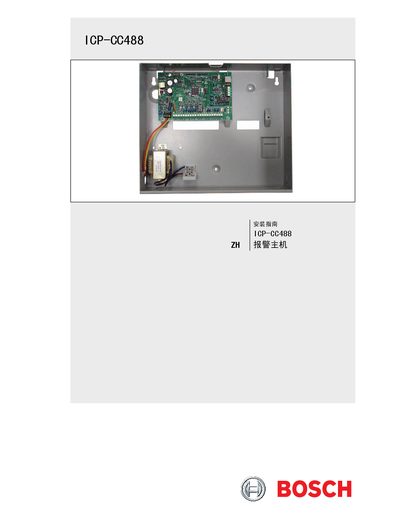

This document is an installation guide for the ICP-CC488 alarm host, which describes the features and characteristics of the product and provides quick start instructions.
This guide provides step‑by‑step instructions for installing the ICP‑CC488 alarm host, including wiring, power connection, and initial configuration. It explains how to set the date and time, program zone types, and use the keypad for arming, disarming and emergency functions.
The document also details system options such as remote wireless transmitters, telephone line monitoring, programmable outputs, and partition management. Technical specifications, warranty information and a programming table are included for reference. This manual is written in Chinese.
| Working temperature | 0 °C to +45 °C |
|---|---|
| Environmental humidity | 10 % – 95 % |
| Power supply | 240 V/18 VAC @ 1.3 A |
| Standby current | 65 mA |
| Alarm current | 115 mA |
| Alarm + keyboard current | 105 mA |
| Backup battery | 6.5 Ah / 12 VDC sealed lead‑acid |
| Dimensions (with packaging) | 306 mm × 262 mm × 84 mm |
| Weight | 2.5 kg |
Bosch Security guarantees the product against material and workmanship defects for three years from the production date.
