The SIMATIC Multi Panels MP 270B/370 are industrial panel PCs based on the Windows CE operating system, which have the flexibility of PCs while being rugged, durable and affordable. It supports both touch screen and membrane keyboard input, which can be used for local operation and monitoring. High performance, openness and scalability are its outstanding features.

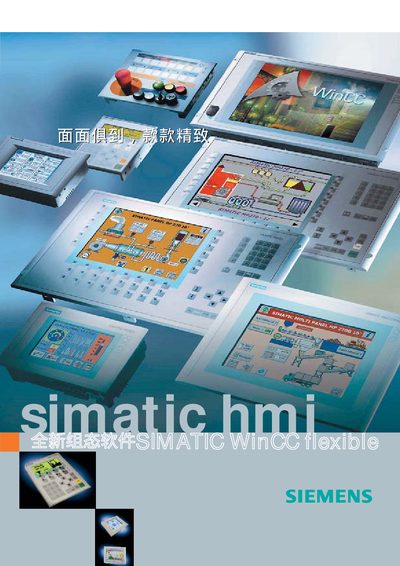

The document describes the SIMATIC HMI Multi Panels family, covering hardware overview, display options, power requirements, and environmental ratings. It explains how the panels integrate with SIMATIC WinCC flexible software for visualization and control in industrial automation systems.
Key sections detail mechanical dimensions, wiring diagrams, communication interfaces (RS‑232/422/485, USB, Ethernet, MPI, PROFIBUS‑DP), and configuration steps for connecting to PLCs such as S7‑200, S7‑300/400, and other third‑party controllers. Maintenance procedures, troubleshooting tips, and specifications tables are also included.
| Display resolution | 640 × 480 pixels |
|---|---|
| CPU | RISC CPU |
| Flash storage | 5 Mbyte |
| Dimensions (MP 270B) | 212 mm × 156 mm |
