The Roland MDX-40A 3D desktop mold machine is an affordable and user-friendly prototype manufacturing solution that supports various materials including resin. It has a compact size, uses standard household power, and supports G-code NC code, making it suitable for professional and educational applications.
The MDX-40A is a small‑footprint desktop mold machine (669 mm W × 760 mm D × 554 mm H) that runs on standard AC mains and can mill a variety of resin‑based materials. It accepts G‑code, making it suitable for both professional and educational use.

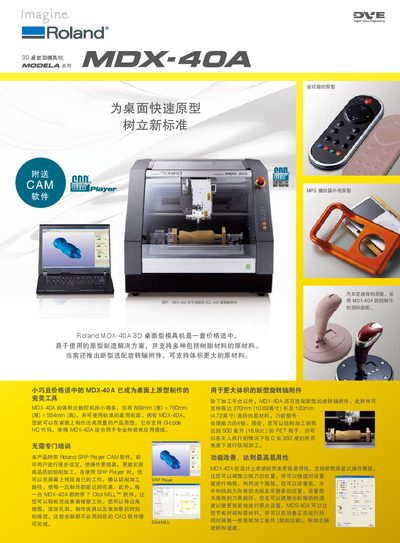

The unit ships with Roland SRP Player CAM and ClickMILL software for toolpath preview, milling, and surface finishing. An optional rotating spindle attachment (ZCL‑40A) expands the material size capability to up to 270 mm length and 120 mm diameter. Detailed specifications, environmental limits, and accessory lists are provided in the manual. This manual is written in Chinese.
| Machine dimensions (W × D × H) | 669 mm × 760 mm × 554 mm |
|---|---|
| Power supply | AC 100‑240 V |
| Spindle speed | 4500‑15000 rpm |
| Maximum load capacity | 1 kg (2.2 lb) |
| Noise level (operating / standby) | 56 dB / 42 dB |
| X/Y travel distance | 305 mm |
| Recommended operating system | Windows Vista (32‑bit) or Windows XP (32‑bit) |
| Recommended RAM | 1 GB or more |
| Optional rotating spindle max material size | 270 mm length, 120 mm diameter |
| Unit weight | 4 kg |
| Operating temperature | 5 °C – 40 °C |
| Operating humidity | 35 % – 90 % RH |
The machine measures 669 mm wide, 760 mm deep, and 554 mm high.
Yes, the optional ZCL‑40A rotating spindle attachment allows machining of material up to 270 mm long and 120 mm in diameter.
The package includes Roland SRP Player CAM and ClickMILL software for toolpath preview, milling, and surface finishing.
It operates on standard AC mains voltage ranging from 100 V to 240 V.
