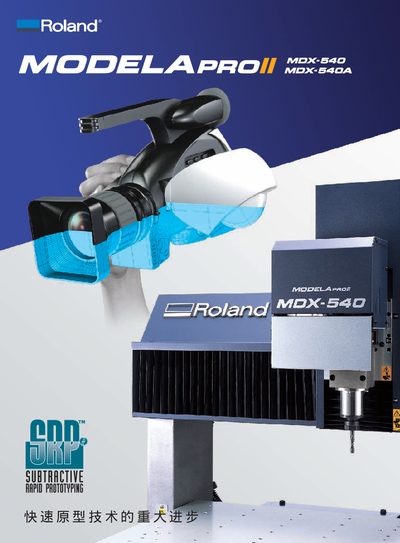

This document introduces the performance characteristics of Roland's MODELA PRO II MDX-540, including the use of subtractive rapid prototyping technology, user-friendly interface, powerful optional accessories, and the ability to process a wide range of materials.
This manual describes the features and performance of the Roland MDX-540 SRP PRO II rapid‑prototyping system, including its large work area, high‑speed spindle, and optional accessories such as the ATC tool changer and safety plate. It also explains how to install the machine, configure the SRP Player software, and safely operate the equipment.
Technical specifications, safety guidelines, and maintenance procedures are provided, along with detailed dimensions, power requirements, and environmental limits to help users achieve precise machining results with a variety of materials. This manual is written in Japanese.
| Maximum tool diameter | 10 mm (0.4 in) |
|---|---|
| Maximum tool weight | 350 g (0.77 lb) |
| Operating temperature | 5‑40 °C (41‑104 °F) |
| Operating humidity | 35‑80 % |
The machine can be used between 5 °C and 40 °C (41 °F‑104 °F).
