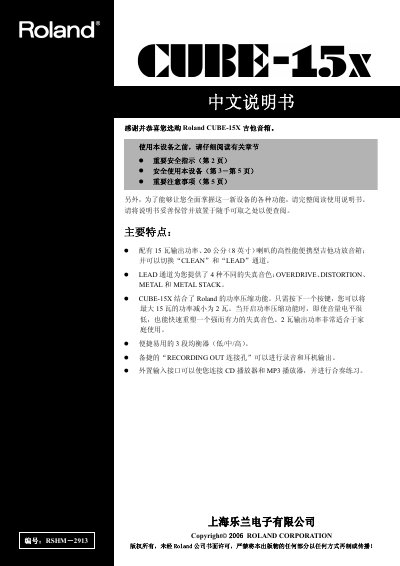

This manual introduces the basic functions and use of the Roland CUBE-15X guitar amplifier.
The CUBE-15X is a portable 15 W guitar amplifier with an 8‑inch speaker, offering CLEAN and LEAD channels and a 3‑band EQ. This manual guides users through safe operation, connection of external devices, and use of the power‑compression feature.
Key sections cover important safety instructions, panel layout, connection procedures, power‑compression activation, and detailed technical specifications such as output power, input levels, and power consumption. This manual is written in Chinese.
| Output Power | 15 W |
|---|---|
| Speaker Size | 20 cm (8 in) |
| Rated Input Level (CLEAN) | -10 dBu / 1 MΩ |
| AUX IN Input Level | -10 dBu |
| Supply Voltage | AC 117 V, AC 230 V or AC 240 V |
| Power Compression Output | 2 W (when enabled) |
Press the POWER SQUEEZER switch; this activates power compression and reduces the output power to 2 W.
Use the SELECT switch; the CLEAN channel is indicated by a green light and the LEAD channel by a red light.
Connect a CD player, MP3 player, or similar device to the AUX IN port and adjust the source volume as needed.
