AT-FS708/PoE is a desktop switch designed for SOHO and small networks, supporting 10/100Mbps auto-adaptive, supporting flow control, supporting MDI/MDIX auto-recognition, supporting VLAN transparent, fanless low-power design.
The AT-FS708/PoE is a compact, fanless Layer‑2 unmanaged switch designed for desktop or rack‑mount use in SOHO and small‑business environments. All eight 10/100Mbps ports support auto‑MDI/MDIX, PoE power delivery, flow control, broadcast‑storm suppression and VLAN pass‑through, providing full‑duplex, non‑blocking performance.

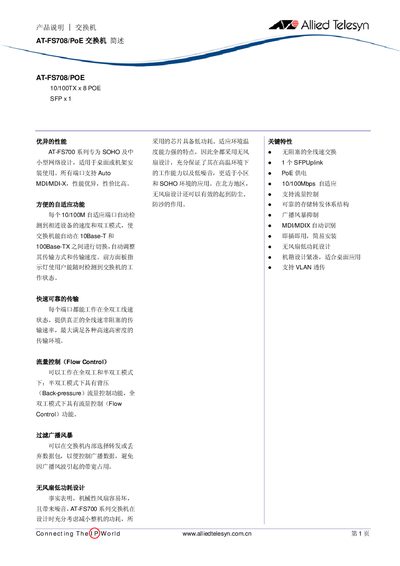

Key specifications include a maximum packet forwarding rate of up to 148,800 packets/sec at 100Mbps, dimensions of 4.3 cm × 33 cm × 22 cm, weight of 1.90 kg, and operation across a temperature range of 0 °C to 40 °C. The device carries UL, CSA, FCC and CE certifications and is supported by Allied Telesyn’s global service network. This manual is written in Chinese.
| Maximum packet forwarding rate (10 Mbps) | 14,880 packets/sec |
|---|---|
| Dimensions (W × D × H) | 4.3 cm × 33 cm × 22 cm |
| Weight | 1.90 kg |
| Operating temperature | 0 °C to 40 °C |
| Certifications | UL 1950, CSA 22.2 No. 950, FCC/EN55022 Class B, CE |
The switch can forward up to 14,880 packets per second at 10 Mbps and up to 148,800 packets per second at 100 Mbps.
No, the AT-FS708/PoE uses a fanless low‑power design.
It operates from 0 °C to 40 °C and can be stored from –25 °C to 70 °C, with humidity ranges of 5 %–80 % RH (operating) and 5 %–95 % RH (storage).
