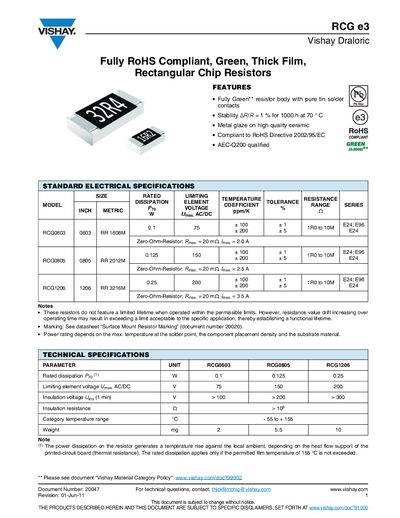

This document introduces a green thick film rectangular chip resistor product produced by Vishay Draloric company. The product has full RoHS compatibility, stability of R/R = 1 % for 1000 h at 70 ° C, and meets RoHS Directive 2002/95/EC and AEC-Q200 standards.
The RCG e3 series are fully RoHS‑compliant, green thick‑film rectangular chip resistors offered by Vishay. They feature a pure tin solder (Pb‑free) contact, 1 % stability over 1000 h at 70 °C, and meet the RoHS Directive 2002/95/EC.
The document lists electrical specifications such as limiting element voltage, insulation voltage, temperature range, weight and TCR for the 0603, 0805 and 1206 sizes. It also describes functional performance, derating curves, green substance limits and detailed test procedures required for qualification.
| Limiting element voltage (Umax) | 75 V (RCG0603), 150 V (RCG0805), 200 V (RCG1206) |
|---|---|
| Insulation voltage (Uing, 1 min) | >100 V (RCG0603), >200 V (RCG0805), >300 V (RCG1206) |
| Temperature range | -55 °C to +155 °C |
| Weight | 2 mg (RCG0603), 5.5 mg (RCG0805), 10 mg (RCG1206) |
The category temperature range is –55 °C to +155 °C.
