CMDF1-16DO is a 16-way switch output expansion module produced by Jietong Technology Co., Ltd. It has Mitsubishi LINK RS-485 communication mode, 600-115.2Kbps optional, switch output circuit and communication circuit electrical isolation, DC 9-30V wide range power input, lightning protection and power anti-reverse protection.

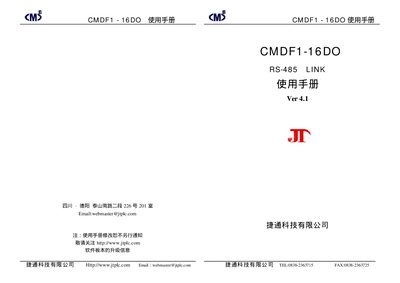

This manual describes the CMDF1-16DO module, a 16‑channel digital output device that communicates via RS‑485. It outlines the main uses, such as PLC and DCS integration, and details the module’s electrical characteristics and output types.
Installation, power supply, and parameter configuration procedures are explained, including wiring diagrams, RS‑485 address settings, and how to use the JTconfig software to modify communication parameters. Safety notes and troubleshooting tips are also provided. This manual is written in Japanese.
| Output Current per Channel | 1 A @ 24 V DC |
|---|---|
| Operating Temperature | -10 °C to +55 °C |
| Weight | ≈0.3 kg |
| Maximum Communication Speed | 115200 bps |
| Maximum Transmission Distance | 1200 m |
Each output can source up to 1 A at 24 V DC.
The RS‑485 interface supports up to 115200 bps.
