CMDF2-4DA is a analog output expansion module produced by Jietong Technology Co., Ltd., mainly used for PLC, DCS, PCS, computer and other control, data acquisition systems, can output 4-way analog voltage or current, support Modbus RTU RS-485 communication mode, support a variety of configuration software
The CMDF2-4DA is a 4‑channel analog output module designed for PLC, DCS, PCS and PC control systems. It provides 12‑bit resolution, isolated RS‑485 communication and supports a wide range of voltage and current output ranges for industrial automation applications.

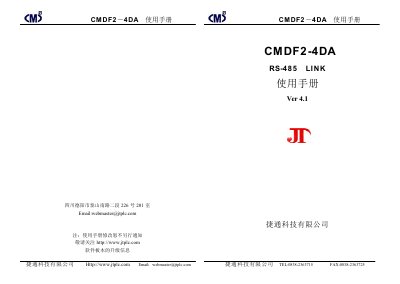

The document covers mechanical dimensions, power requirements, wiring diagrams, parameter configuration via JTconfig, Modbus register tables, and troubleshooting tips, enabling users to integrate the module into their control networks quickly and reliably. This manual is written in Chinese.
| Power Supply Voltage | DC 9 V – 30 V |
|---|---|
| Baud Rate | 600 bps – 115200 bps |
The module operates from a DC supply of 9 V to 30 V.
