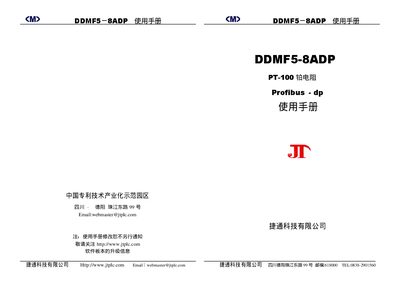

The JTPLC DDMF5-8ADP manual provides specifications, wiring, configuration and operation instructions for the Profibus‑DP interface module.
The DDMF5-8ADP is an 8‑channel Profibus‑DP interface module with 12‑bit PT‑100 temperature inputs. It operates from a 24 V DC supply, supports isolated power, and offers communication speeds from 19.2 kbps up to 12 Mbps.
The manual covers installation, wiring diagrams, configuration steps, GSD file handling, testing procedures, and safety information. It also lists the electrical and mechanical specifications needed for integration into PLC, DCS or PCS systems. This manual is written in Chinese.
| Input Type | 12‑bit PT‑100 temperature input |
|---|---|
| Power Supply | DC 24 V (5 % tolerance) |
| Communication Speed | 19.2 kbps – 12 Mbps |
| Dimensions (L×W×H) | 128 mm × 71 mm × 26 mm |
It requires a DC 24 V supply with a 5 % tolerance.
Supported speeds range from 19.2 kbps up to 12 Mbps.
The module measures 128 mm × 71 mm × 26 mm.
