JTPLC CMDF5-4AD User Manual

The JTPLC CMDF5-4AD User Manual provides installation, configuration, and operation instructions for the 4‑channel analog input module.

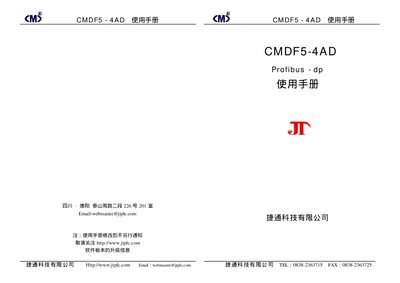

JTPLC CMDF5-4AD User Manual - cover page
Brand
JTPLC
Category
Industrial Supply
Document type
User Manual
Language
Chinese
Pages
8
File format
PDF
File size
1.1 MB
Published
13 January, 2012
Updated
28 September, 2026
MD5 checksum
1403323A26527F42A42F9F212CD08113

About this manual

The CMDF5‑4AD is a 4‑channel, 12‑bit analog input module designed for Profibus‑DP fieldbus systems used with PLCs, DCS, PCS and computers. It supports multiple input ranges (0‑5 V, 0‑20 mA, 1‑5 V, 4‑20 mA), isolated power and communication, and offers LED display and button‑based address/parameter setting.

The manual covers hardware installation, power connection, Profibus‑DP wiring, GSD file installation in STEP 7, parameter configuration, troubleshooting LEDs, and sample STEP 7 programming for reading analog values. This manual is written in Chinese.

What's inside

  • Purpose and Application
  • Key Features
  • Technical Specifications
  • Terminal and Wiring Diagrams
  • Parameter Setting Procedure
  • Power and Communication Settings
  • GSD File Installation
  • Hardware Configuration in STEP 7
  • Programming and Data Acquisition
  • Adjustable On‑Site Parameters

Specifications

Number of Channels4
Resolution12 Bit
Communication Speed9.6 Kbps ~ 6 Mbps (adaptive)
Power Supply VoltageDC 9 V ~ 30 V
Maximum Power Consumption2100 mW
Maximum Nodes on Bus125
Maximum Transmission Distance< 1.2 km (Profibus line)
Isolation Voltage2500 V

Frequently asked questions

What is the maximum power consumption of the CMDF5‑4AD?

The module consumes up to 2100 mW of power.

How can I install the GSD file for this module?

Open the STEP 7 hardware configuration, select the appropriate GSD file for the CMDF5‑4AD, and install it through the hardware interface.

What do the LED indicators show when there is a communication fault?

The LED display continues to show the module’s address, the BUF (green) LED turns off, and the ERR (red) LED flashes.
