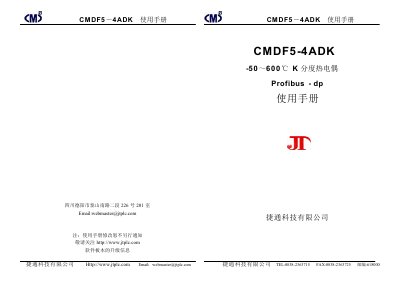

The JTPLC CMDF5-4ADK manual provides installation, configuration, and operation instructions for the Profibus‑DP K‑type thermocouple interface module.
The CMDF5-4ADK is a Profibus‑DP interface module that accepts four K‑type thermocouple inputs with 12‑bit resolution. It operates over a temperature range of –50 °C to 600 °C and supports communication speeds from 9.6 kbps up to 6 Mbps. The module is powered by a DC supply of 9 V to 30 V and includes LED indicators for status display.
The manual covers hardware installation, wiring diagrams, power‑up procedures, parameter settings (SET/SEL), LED functions, error handling (BUF/ERR), and Profibus‑DP configuration. It also explains how to install the GSD file for Siemens STEP 7, perform testing, and troubleshoot common issues. This manual is written in Chinese.
| Resolution | 12 bit (4096 steps) |
|---|---|
| Communication speed | 9.6 kbps – 6 Mbps |
| Power supply voltage | DC 9 V – 30 V |
It supports Profibus‑DP speeds from 9.6 kbps up to 6 Mbps.
The module requires a DC supply between 9 V and 30 V.
