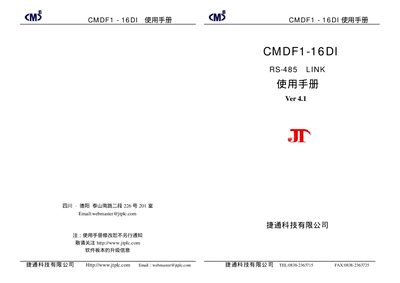

CMDF1-16DI User Manual introduces the main uses, features, main parameters, and usage methods of the product
This manual provides detailed instructions for installing and configuring the CMDF1‑16DI switch‑input module. It covers power supply requirements, wiring diagrams, and the RS‑485 link settings needed to integrate the module with PLC, DCS or PC systems.
The document also describes address configuration, SUM settings, and the JTconfig software parameters for communication speed and data format, helping technicians set up reliable data acquisition and alarm functions. This manual is written in Chinese.
| Communication Speed | 600‑115.2 Kbps |
|---|---|
| Input Voltage Range | DC 9‑30 V |
Enter the high‑byte (AddrH) and low‑byte (AddrL) values in the address registers as shown in the manual.
The module supports RS‑485 communication speeds from 600 bps up to 115.2 Kbps.
The module operates with a DC input voltage between 9 V and 30 V.
