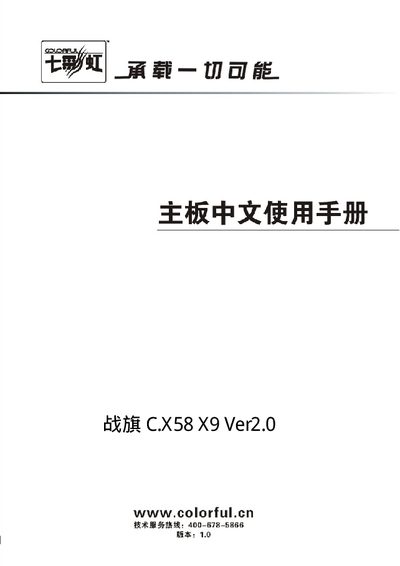

This is the user manual of the C.X58 X9 Ver2.0 motherboard, which introduces the hardware installation, driver installation, BIOS settings and other content of the motherboard.
This manual covers the Colorful C.X58 X9 Ver2.0 motherboard, describing its features, hardware installation, driver setup, BIOS configuration, and troubleshooting procedures.
It also lists the accessories supplied with the board, provides contact information for technical support, and includes safety and regulatory information. This manual is written in Chinese.
| CPU socket | LGA1366 |
|---|---|
| Memory slots | 6 DIMM slots |
| Supported memory speeds | DDR3 1600/1333/1066 MHz |
| PCI Express x16 slots | 5 |
| USB ports | 10 USB 2.0 ports |
| Audio | 8‑channel audio controller |
| Network | Integrated Gigabit Ethernet |
Create a DOS boot disk, copy the BIOS flash utility and the new BIOS file to it, boot into DOS mode and run the utility as described in the BIOS upgrade section.
The package contains the motherboard, two SATA data cables, two SATA power adapters, a driver CD, a warranty card, the Chinese user manual, a rear‑panel shield, and a Bluetooth antenna.
The board provides five PCI Express x16 slots.
