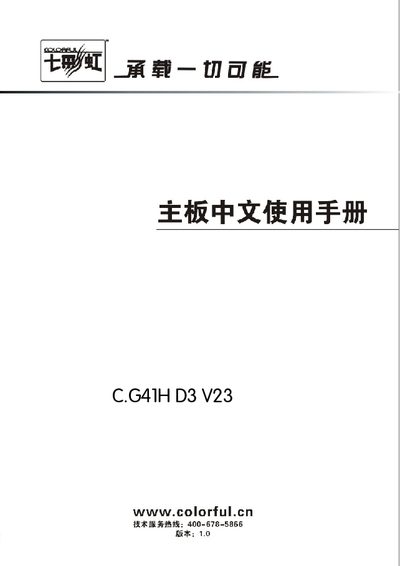

C.G41H D3 V23 mainboard manual, introduces the mainboard's hardware installation, driver installation, BIOS setting, etc.
The manual introduces the Colorful C.G41H D3 V23 motherboard, which uses the Intel G41+ICH7 chipset, supports LGA775 Intel Core 2 processors, DDR3 1066 MHz memory, and provides a range of integrated peripherals such as a 6‑channel audio controller and a 10/100 Mbps Ethernet port.
It provides step‑by‑step instructions for hardware installation, driver installation, BIOS configuration, jumper settings, and BIOS flashing. Safety precautions, warranty information, and contact details for Colorful support are also included. This manual is written in Chinese.
| Form factor | mATX |
|---|---|
| Chipset | Intel G41 + ICH7 |
| CPU support | LGA775 Intel Core 2 Duo/Quad and Intel Celeron |
| Memory type | DDR3 1066 MHz, 2 slots |
| Expansion slots | 1 × PCI‑Express x16, 1 × PCI‑Express x1, 1 × PCI |
| SATA ports | 4 × SATA2 |
| USB ports | 8 × USB 2.0 (4 internal) |
| Network | Integrated 10/100 Mbps Ethernet |
It provides four SATA2 ports for connecting storage devices.
Short the CLR_CMOS pins 2‑3 with a jumper to clear the CMOS data.
Select the User password option in the BIOS Security settings, enter a password up to eight characters, confirm it, and save the settings.
