The C.945GC Ver2.3 motherboard features the latest Intel® 945GC A2 + ICH7 chipset design, supporting FSB 533/800/1066MHz System BUS frequency, supporting dual-channel DDR2 533/667 type module memory, and built-in Intel® GMA950 graphics core. The C.945GC Ver2.3 motherboard supports Intel® LGA775 type interface Core™ 2 Duo/Pentium® D/ Pentium® 4/ Celeron® D processors; onboard 6-channel audio card; integrated 1000M network card; it has excellent cost performance and is the right choice for cost-conscious consumers! The C.945GC Ver2.3 motherboard provides 1 PCI-Express x16 slot, 2 PCI slots, 4 SATA2 interfaces, 8 high-speed USB2.0 interfaces (4 need expansion), 1 VGA interface, 1 serial COM interface, rich expansion modes, and strong expansion performance.

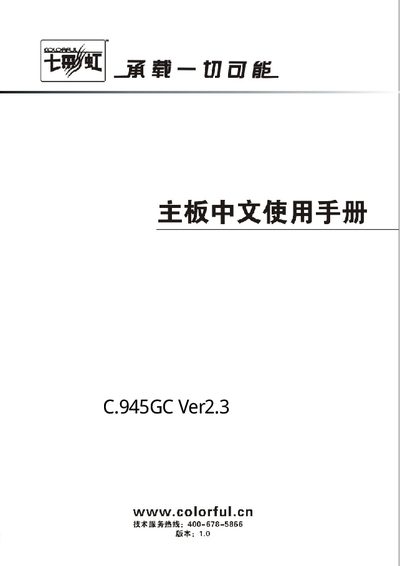

This manual introduces the Colorful C.945GC Ver2.3 motherboard, its packaging contents, and key features such as the Intel 945GC chipset, dual‑channel DDR2 memory support, and integrated GMA950 graphics. It also lists the connectors, slots, and supported CPUs.
The document is organized into chapters covering hardware installation, driver installation, BIOS settings, advanced BIOS features, power management, PC health monitoring, frequency/voltage control, and an appendix with jumper settings and layout diagrams. Technical support contact information is provided at the end. This manual is written in Chinese.
| Chipset | Intel 945GC A2+KH7 |
|---|---|
| Memory | 2 DDR2 slots, dual‑channel 533/667 MHz SDRAM |
| SATA Ports | 4 SATA2 high‑speed interfaces |
| USB Ports | 8 USB2.0 ports (4 built‑in, 4 via expansion) |
| PCI Express Slots | 1 × PCI Express x16 |
| PCI Slots | 2 × PCI |
| Integrated Graphics | Intel GMA950 |
| Network | 10/100 Mbps Ethernet |
| Audio | 6‑channel audio controller |
It provides eight USB2.0 ports, four of which are built into the board and four available via expansion headers.
