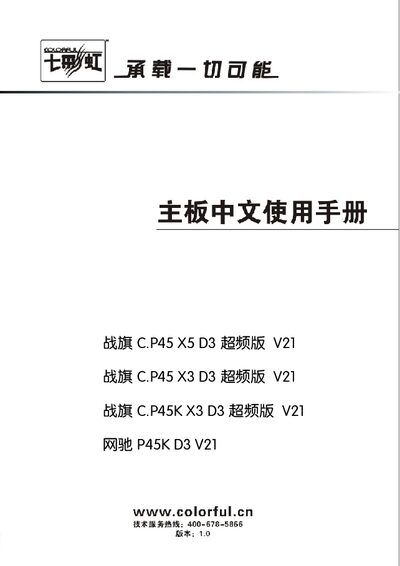

The Colorful C.P45 X5 D3 V21, C.P45 X3 D3 V21, and P45K D3 V21 motherboard user manual provides hardware installation, driver setup, BIOS configuration, and…
This manual introduces the Colorful C.P45 series and P45K motherboards, highlighting features such as Intel P45 chipsets, ATX form factor, DDR3 memory support, multiple PCI‑Express slots, integrated Gigabit Ethernet, 8‑channel audio, and optional Wi‑Fi/Bluetooth on the X5 model. It also lists the accessories included in the box and provides contact information for technical support.
The document is organized into chapters covering an introduction, hardware installation, driver installation, BIOS settings (including advanced and overclocking options), and an appendix with detailed connector diagrams, jumper settings, and BIOS upgrade procedures. This manual is written in Chinese.
| Chipset | Intel P45+ICH10R |
|---|---|
| Form Factor | ATX |
| Memory Slots | 4 DDR3 slots, dual‑channel, supports DDR3 1333/1066 |
| SATA Ports | 6 SATA II ports |
| USB Ports | 10 USB 2.0 ports (1 internal) |
| Audio | Integrated 8‑channel audio controller |
| Network | Integrated Gigabit Ethernet (10/100/1000 Mbps) |
| BIOS | AMI Flash ROM |
Locate the 3‑pin CMOS clear jumper on the board and set it according to the diagram in the manual.
Yes, the C.P45 X5 D3 V21 version has built‑in Wi‑Fi and Bluetooth, while the other models do not.
The board provides six SATA II ports for connecting storage devices.
