Colorful C.P35 X5 motherboard is based on the latest Intel® P35+ICH9 chipset design, supporting FSB 800/1066/1333MHz overclocking, built-in 4-channel DDR3 memory, supporting dual ATI CrossFireX technology, supporting SATA II 6Gb/s and SATA III 6Gb/s two interface, and equipped with HDMI interface, supporting the highest 1080p resolution display.

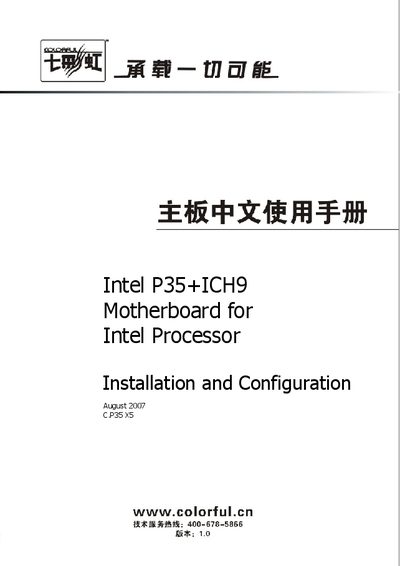

This manual provides step‑by‑step instructions for installing the Colorful C.P35 X5 motherboard, preparing the system, and configuring the hardware components. It includes safety precautions, board orientation, and a detailed component list.
Key sections cover hardware installation, BIOS settings, peripheral connections, driver installation, and troubleshooting tips. The guide also lists specifications such as supported CPUs, memory types, expansion slots, storage interfaces, audio and network features. This manual is written in Chinese.
| CPU socket | LGA775 |
|---|---|
| Chipset | Intel P35+ICH9 |
| Supported FSB frequencies | 800/1066/1333 MHz |
| Memory slots | 4 × 240‑pin DDR2 1.8 V |
| Memory type and speed | DDR2 dual‑channel 667/800 MHz |
| PCI‑Express slots | 2 × PCI‑Express x16 (CrossFire), 2 × PCI‑Express x1 |
| PCI slots | 2 × PCI |
| SATA interfaces | 5 × SATA II + 1 × eSATA |
| Audio | 8‑channel HD audio controller |
| Network | Gigabit Ethernet (10/100/1000 Mbps) |
It uses an LGA775 socket for Intel processors.
The motherboard provides five SATA II ports plus one eSATA port.
It supports up to four DDR2 modules, dual‑channel at 667 MHz or 800 MHz.
There are two PCI‑Express x16 slots for CrossFire and two PCI‑Express x1 slots for other expansion cards.
