C.P45 X7 Ver2.0 is a motherboard that supports the latest Intel P45 + ICH10R chipset design, supports 800/1066/1333MHz front-end bus, supports DDR2 667/800/1066 type module memory, supports PCI- E 2.0 specification.

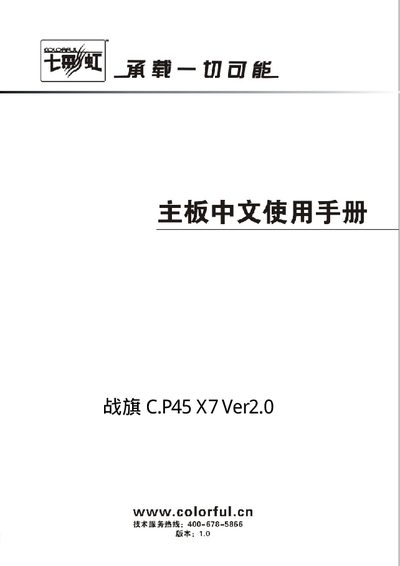

This manual covers the complete setup of the Colorful C.P45 X7 Ver2.0 motherboard, including an introduction, hardware installation, driver installation, BIOS settings, and an appendix with jumper and connector tables. Detailed instructions guide users through preparing the package, installing the board, configuring BIOS options, and updating drivers.
The document also lists the motherboard’s technical specifications such as chipset, supported CPUs, memory types, expansion slots, storage interfaces, networking, audio, and USB ports. Contact information for Colorful’s technical support and service centers across China is provided at the end of the manual. This manual is written in Chinese.
| Chipset | Intel P45 + ICH9R |
|---|---|
| Front Side Bus | 800/1066/133 MHz |
| Memory Type | DDR2 667/800/1066 |
| Memory Slots | 4 × 240‑pin DDR2 slots (dual‑channel) |
| PCI Express Slots | 2 × PCI‑Express x16, 2 × PCI‑Express x1 |
| PCI Slots | 2 × PCI |
| SATA Interfaces | 6 × SATA2, 1 × eSATA |
| USB Ports | 10 × USB 2.0 (incl. 4 internal), 3 × front‑panel USB |
| Audio | 8‑channel onboard audio |
The board supports DDR2 memory modules at 667 MHz, 800 MHz, and 1066 MHz in dual‑channel mode.
