APC Smart-UPS 2200VA/3000VA User Manual

This manual describes the features and usage of the Smart-UPS® 2200VA 120/230VAC 3000VA 120/208/230VAC 2U Rack Mount UPS.

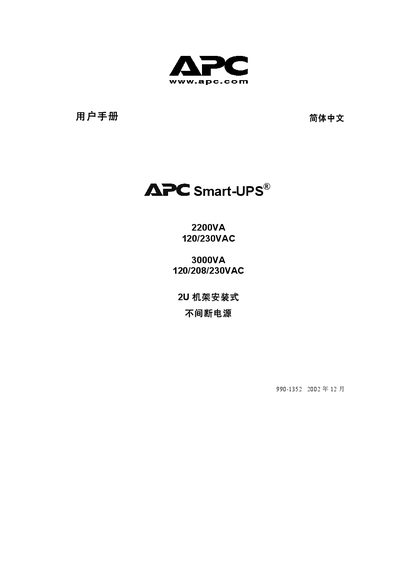

APC Smart-UPS 2200VA/3000VA User Manual - cover page
Brand
APC
Category
Other
Document type
User Manual
Language
Chinese
Pages
16
File format
PDF
File size
625 KB
Updated
30 September, 2023
MD5 checksum
EFE12396192644632C244AD0F74CCF5F
PDF
APC Smart-UPS 2200VA/3000VA User Manual PDF

About this manual

This manual provides step‑by‑step instructions for installing and operating the APC Smart‑UPS 2200VA and 3000VA rack‑mount units. It includes safety guidelines, rack‑mount procedures, wiring diagrams, and configuration options using PowerChute software.

The document also details front‑panel indicators, emergency power‑off (EPO) setup, battery maintenance, and a comprehensive fault‑diagnosis guide to help users resolve common issues. This manual is written in Chinese.

What's inside

  • Introduction
  • Safety and Installation
  • Rack‑Mount Installation
  • Connecting Devices and Power
  • Emergency Power Off (EPO)
  • Front Panel Indicators
  • Features and Functions
  • User Configuration Options
  • Fault Detection and Troubleshooting
  • Warranty and Regulatory Information

Specifications

Model ratings2200VA 120/230VAC, 3000VA 120/208/230VAC
Form factor2U rack‑mount
120 V input plugNEMA L5‑30R
208 V input plugNEMA L6‑30R
Initial battery charge≈90 % of capacity after first 4 h
