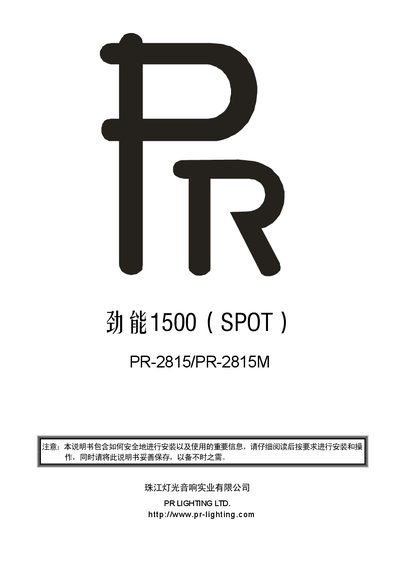

This document provides installation and usage instructions for the PR LIGHTING LTD. 劲能1500 (SPOT) PR-2815/PR-2815M, including information on the fixture structure and installation, bulb replacement, power connection, control signal connection, fixture function settings, fixture DMX start address settings, and operation menu.
The PR-2815 and PR-2815M are professional indoor spot lights manufactured by PR Lighting. The manual covers safe handling, mechanical installation, lamp replacement, power and control wiring, and DMX configuration.
Key sections include safety warnings, lamp structure, power and signal connections, DMX address setting, operation menus, digital error messages, pattern plate replacement, LED panel indicators, maintenance procedures, technical specifications, circuit diagrams and spare‑part ordering codes. This manual is written in Chinese.
| Input voltage (electronic ballast version) | 200‑240 V AC, 50/60 Hz |
|---|---|
| Input voltage (inductive ballast version) | 220‑230 V AC, 50/60 Hz |
| Rated power (electronic ballast) | 1800 W @220 V |
| Rated power (inductive ballast) | 1900 W @220 V |
| Lamp type | OSRAM HTI 1500 W/D7/60, 6000 K |
| Lamp life | 750 hours |
| Color system | CYM linear mixing |
Power on the fixture, hold the ENTER key for more than 5 seconds to unlock the panel, press ENTER to display the DMX address, use the UP/DOWN keys to change the value, then press ENTER to confirm.
