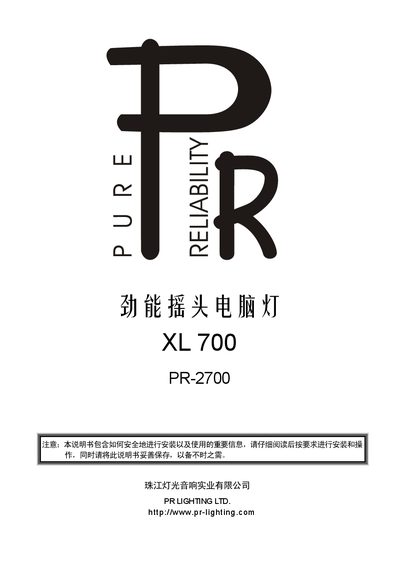

The PR Lighting XL 700 PR-2700 is a high-brightness and multi-functional computer lamp. It is designed for indoor use with an IP20 protection level. The lamp features DMX control and bulb replacement capability.
This manual provides safety warnings, mechanical installation steps, lamp replacement procedures, and power‑connection guidelines for the XL 700 PR‑2700 shaking head light. It also details DMX signal wiring, address configuration, and function settings using the LCD control panel.
Maintenance instructions include lubrication, cleaning, fault troubleshooting, and a complete list of technical specifications and part ordering codes. The document is intended for qualified technicians and end‑users operating the product indoors (IP20). This manual is written in Chinese.
| Input Voltage | 100‑240 V AC, 50/60 Hz |
|---|---|
| Rated Power | 830 W @ 220 V |
| Lamp Socket | SFc10‑4, double‑ended |
| Rated Lamp Life | 750 hours |
| IP Rating | IP20 (indoor use only) |
The lamp is rated IP20 and is intended for indoor use only.
It can be powered from 100 V up to 240 V AC, 50/60 Hz, matching the voltage marked on the lamp.
In standard mode the product provides 24 channels, with the first lamp’s DMX start address set to 001.
