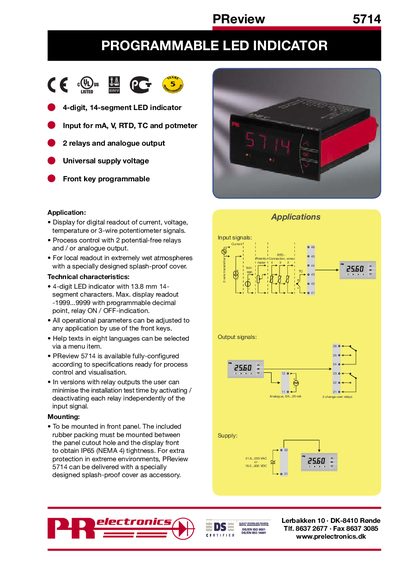

PReview 5714 is a programmable LED indicator that can be used for digital readout of current, voltage, temperature or 3-wire potentiometer signals. It also has 2 potential-free relays and/or analogue output for process control. The device can be used in extremely wet atmospheres and comes with a specially designed splash-proof cover.
The PReview 5714 is a 4-digit, 14-segment LED indicator designed for displaying current, voltage, temperature, or potentiometer signals. It features two potential-free relays and an analogue output for process control applications. The device supports universal supply voltages and includes front keys for programming operational parameters.
| Display | 4-digit, 14-segment LED |
|---|---|
| Input types | mA, V, RTD, TC, potmeter |
| Relay outputs | 2 potential-free relays |
| Supply voltage | Universal |
| Mounting | Front panel |
| Tightness | IP65 (NEMA 4) |
The device accepts inputs for current (mA), voltage (V), RTD, thermocouple (TC), and potentiometer signals.
It is equipped with two potential-free relays.
The display shows 4 digits with a maximum readout of -1999...9999.
