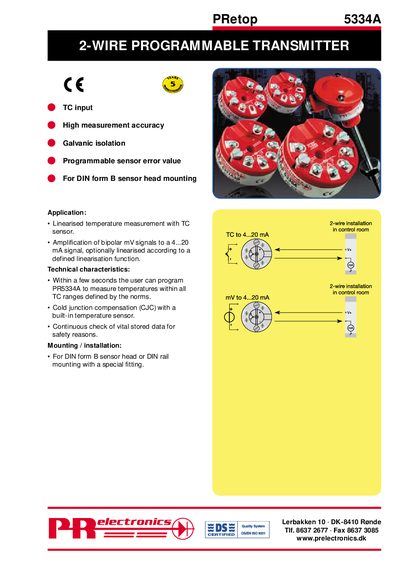

PRetop 5334A is a 2-wire programmable transmitter used for linearized temperature measurement with TC sensor and amplification of bipolar mV signals to a 4-20 mA signal. It can be programmed within seconds to measure temperatures within all TC ranges defined by the norms. It also features cold junction compensation and continuous check of vital stored data for safety. It is suitable for DIN form B sensor head or DIN rail mounting.
The PR Electronics 5334A is a 2‑wire programmable transmitter designed for linearised temperature measurement and amplification of bipolar mV signals to a 4‑20 mA output. It offers high measurement accuracy, galvanic isolation, programmable sensor error values, and built‑in cold‑junction compensation.
The device can be mounted on a DIN‑form B sensor head or DIN rail using a special fitting. It operates from a 7.2‑35 VDC supply, isolates up to 1.5 kVAC, and complies with IEC and DIN standards. Key specifications include a temperature range of –40 °C to +85 °C, a 4‑20 mA output, and a compact size of 44 × 20.2 mm weighing 50 g.
| Temperature measurement range | -40 °C to +85 °C |
|---|---|
| Supply voltage | 7.2‑35 VDC |
| Output current range | 4‑20 mA |
| Isolation voltage (test/operation) | 1.5 kVAC / 50 VAC |
It measures temperatures from –40 °C to +85 °C.
The transmitter operates from a 7.2 V to 35 V DC supply.
The output current is 4 mA to 20 mA.
