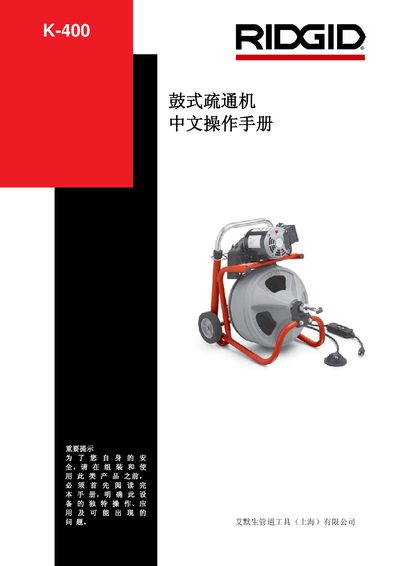

This manual is the operator's manual of K-400 drum auger machine, which mainly introduces the characteristics, technical parameters, standard configuration, machine assembly, operating steps, maintenance guidance and other contents.
This manual provides safety instructions, personal protective equipment requirements, and general precautions for operating the RIDGID K-400 drum dredging machine. It explains hazard symbols, safe work practices, and the importance of grounding and proper wiring.
The guide details assembly steps, wheel installation, optional automatic feed mechanism setup, technical specifications, troubleshooting, wiring diagram, and the lifetime warranty terms. It also includes maintenance procedures such as cleaning the feed mechanism and lubricating moving parts. This manual is written in Chinese.
| Cable drum capacity | 3/8"×100 ft and 1/2"×75 ft |
|---|---|
| Cable drum speed | 165 RPM (no load) |
| Motor type | 115 V/230 V 50‑60 Hz reversible universal AC motor |
| Power | 380 W @ 1725 rpm |
| Current | 6.7 A |
| Weight (machine only) | 45 lb (20 kg) |
| Dimensions (with auto feed) | Length 21"‑24", Height 237 mm, Width 177 mm |
| Warranty | Lifetime warranty |
