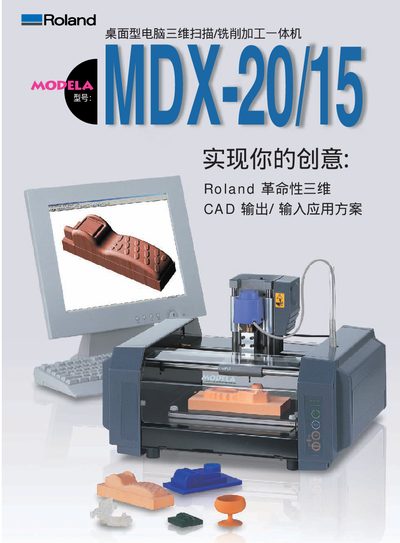

MDX-20/15 Modeling & Scanning is a revolutionary 3D CAD output/input application from Roland that is easy to use, powerful, and compatible with a wide range of popular 3D CAD applications and computer graphics software.
The Roland MDX-20/15 is a compact desktop system that combines 3‑D scanning and milling functions in a single unit. It is designed for easy use, allowing beginners to create models from scanned objects or CAD files with high precision.
The manual provides detailed instructions on machine setup, software compatibility, tool selection, safety guidelines, and maintenance procedures, as well as a full list of technical specifications and supported file formats. This manual is written in Chinese.
| Minimum step size | 0.00625 mm (0.00024 in) |
|---|---|
| Maximum workpiece weight | 1000 g (2.2 lb) |
| Interface | RS‑232 serial port |
| Power supply | DC + 19 V, 2.1 A |
| Machine weight | 13.7 kg (30.2 lb) |
| Machine dimensions (W×D×H) | 476.8 mm × 381.6 mm × 305 mm |
It uses an RS‑232 serial port for communication.
