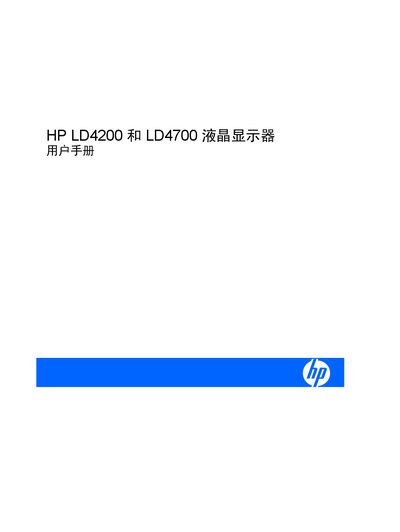

This document is about the user manual of HP LD4200 and LD4700 LCD monitors. It mainly includes information about product features, safety and maintenance guidelines, installation of the monitor, using the monitor, troubleshooting, and technical specifications.
This manual provides detailed instructions for installing, configuring, and using the HP LD4200 and LD4700 LCD digital signage displays. It includes safety guidelines, mounting options, remote‑control operation, and connection methods for video and audio sources.
The document also contains technical specifications, command reference lists for RS‑232C control, and regulatory information required for worldwide deployment. This manual is written in Chinese.
| Display size (LD4200) | 42 in (106.7 cm) diagonal |
|---|---|
| Display size (LD4700) | 47 in (119.28 cm) diagonal |
| Resolution (both models) | 1920 × 1080 |
| Pixel pitch (LD4200) | 0.681 mm × 0.681 mm |
| Pixel pitch (LD4700) | 0.5415 mm × 0.5415 mm |
| Typical power consumption (active mode) | 300 W |
| Standby power consumption | ≤ 1 W (RGB) / ≤ 4 W (HDMI/DVI) |
The displays accept HDMI, VGA (via provided cable), composite, S‑video, and RS‑232 signals.
The typical power consumption is 300 W.
The LD4200 has a pixel pitch of 0.681 mm × 0.681 mm.
