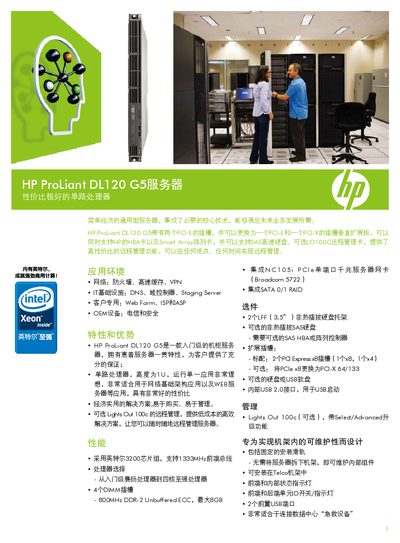

This document describes the features and advantages of the HP ProLiant DL120 G5 server, including entry-level rack server, single-processor, cost-effective solution, optional remote management, etc.
The HP ProLiant DL120 G5 is a 1U rack‑mount server designed for network infrastructure, web‑farm and ISP applications. It supports a range of Intel processors from Pentium dual‑core to Xeon quad‑core, offers four DDR2‑ECC DIMM slots for up to 8 GB of memory, and includes an integrated NC105i Gigabit Ethernet controller.
The server provides extensive expandability with two PCI‑Express slots, optional SAS/HBA cards, and up to two non‑hot‑plug 3.5" drives. An optional Lights‑Out 100c remote‑management card enables KVM over IP, power control and firmware updates. Power is supplied by an adaptive 350 W PFC unit, and the chassis measures 4.30 cm × 44.80 cm × 69.85 cm (1U) with a weight of about 14 kg. This manual is written in Chinese.
| Memory | 4 DIMM slots, DDR2‑800 MHz ECC, up to 8 GB |
|---|---|
| Network controller | Integrated NC105i PCIe single‑port Gigabit Ethernet (Broadcom 5722) |
| Storage bays | 2 non‑hot‑plug 3.5" drive bays (optional SAS) |
| Power supply | Adaptive 350 W PFC power supply |
| Dimensions | 1U rack, 4.30 cm × 44.80 cm × 69.85 cm (H × W × D) |
| Weight | ≈14 kg (installed with 2 drives, power supply and CPU) |
| Operating temperature | 10 °C to 35 °C (non‑operating –30 °C to 60 °C) |
| Input voltage | 90‑132 V AC or 180‑264 V AC |
The server has four DIMM slots and supports up to 8 GB of DDR2‑ECC memory.
The server uses an adaptive 350 W PFC power supply.
