The HP ProLiant ML370 G5 server is a high-performance, highly available two-way processor server that uses the latest Intel ® Xeon ® quad-core and dual-core processors, as well as the new SAS hard disk array controller Smart Array P400 or E200. The front-end bus frequency is greatly increased and can reach 1333 MHz. The high performance and high reliability combination can fully meet the application of high load environment.
The HP ProLiant ML370 G5 is a dual‑processor 5th‑generation server offering high performance, reliability and integrated management features such as iLO 2 remote console. It supports Intel Xeon quad‑core processors, up to 64 GB of DDR2 memory, and a variety of storage and expansion options.

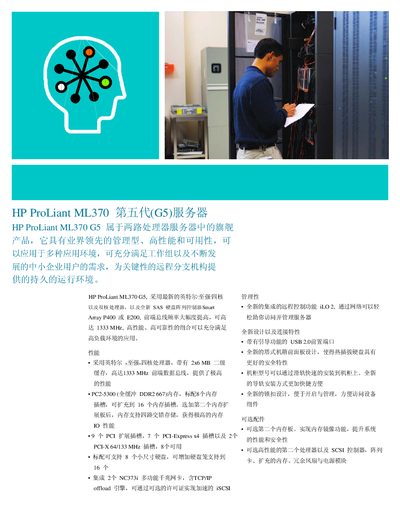

The manual provides detailed information on standard configurations, optional components, power and thermal specifications, rack‑mount installation, and supported management software like HP Systems Insight Manager and SmartStart. It also outlines service and support options, including warranty and Gold Service details. This manual is written in Chinese.
| Supported Processors | Intel Xeon 5405 (2.0 GHz), 5410 (2.33 GHz), X5460 (3.16 GHz), X5450 (3.00 GHz), E5450 (3.00 GHz), E5440 (2.83 GHz), E5430 (2.66 GHz), E5420 (2.50 GHz), E5410 (2.66 GHz), E5405 (2.00 GHz) |
|---|---|
| Front‑Side Bus Speed | 1333 MHz |
| Memory Type | PC2‑5300 (Fully Buffered DDR2‑667) |
| Maximum Memory Slots | 16 slots (up to 64 GB) |
| PCI Expansion Slots | 9 total – 7 PCI‑Express x4, 2 PCI‑X 64/133 MHz |
| Integrated Network Controllers | 2× NC373i Gigabit NIC with TCP/IP offload |
| Power Input | 735 W (input), 775 W typical, 1001 W max |
| Dimensions (H×W×D) | 21.92 × 44.45 × 67.31 cm |
| Weight (tower) | 30.84 kg (68 lb) |
The ML370 G5 provides up to 16 DDR2 memory slots, allowing a maximum of 64 GB of RAM.
Yes, it includes integrated iLO 2 remote management with a virtual console, power button control, and secure remote access.
