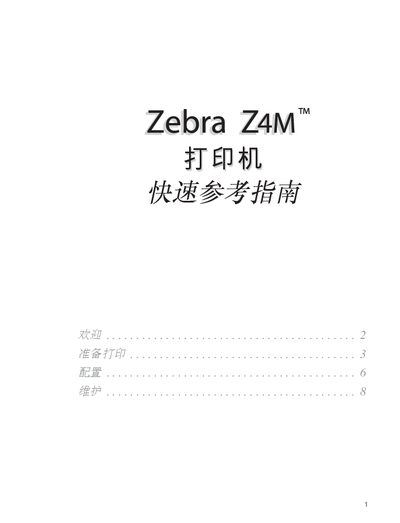

This is a quick reference guide for a printer. It introduces the installation, operation and maintenance of the printer.
The guide introduces the Zebra Z4M printer and gives step‑by‑step instructions for connecting the power supply, loading media and ribbon, and using the front‑panel buttons. It also explains how to configure printer settings, print a test label, and interpret indicator lights.
Safety warnings, cleaning procedures, fuse replacement, and print‑head pressure adjustment are detailed to help keep the printer operating reliably. Contact information for Zebra support and recommended cleaning solvents are also included. This manual is written in Chinese.
| Input voltage range | 90 VAC to 265 VAC |
|---|---|
| Fuse rating | 5 A / 250 V |
The printer automatically detects the line voltage and works with an input range of 90 VAC to 265 VAC.
Turn off the AC power switch, remove the old fuse from the fuse box, and install a 5 A / 250 V fast‑acting fuse.
