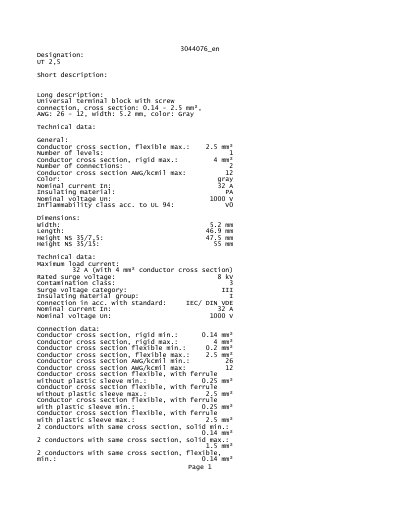

The UT 2.5 is an Emerson Electric NS35 series universal terminal block with screw connection, cross section: 0.14 - 2.5 mm², AWG: 26 - 12, width: 5.2 mm, color: Gray.
The Phoenix Contact UT 2,5 is a universal terminal block designed for screw connections. It accommodates flexible conductors with a maximum cross-section of 2.5 mm² (AWG 26 to 12) and rigid conductors up to 4 mm². The unit features a gray color and a width of 5.2 mm.
| Nominal current In | 32 A |
|---|---|
| Nominal voltage Un | 1000 V |
| Width | 5.2 mm |
| Conductor cross section, flexible max. | 2.5 mm² |
| Conductor cross section, rigid max. | 4 mm² |
| Number of connections | 2 |
| Screw thread | M 3 |
| Tightening torque, min | 0.6 Nm |
The nominal current (In) is rated at 32 A.
The stated width of the unit is 5.2 mm.
A stripping length of 9 mm is required for connection.
