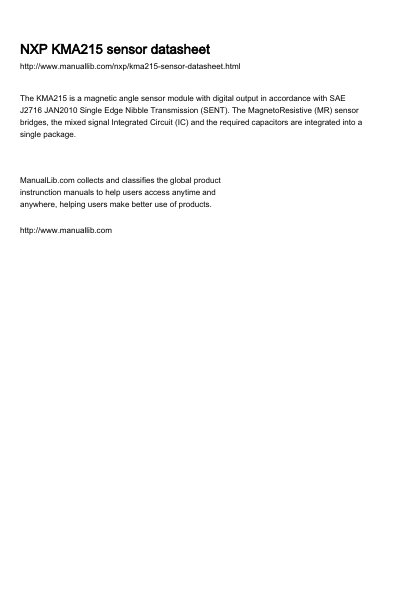

The KMA215 is a magnetic angle sensor module with digital output in accordance with SAE J2716 JAN2010 Single Edge Nibble Transmission (SENT). The MagnetoResistive (MR) sensor bridges, the mixed signal Integrated Circuit (IC) and the required capacitors are integrated into a single package.
The NXP KMA215 is a programmable magnetic angle sensor module designed for automotive applications. It integrates MagnetoResistive (MR) sensor bridges, a mixed-signal Integrated Circuit (IC), and capacitors into a single package to provide high-precision angular measurement. The device complies with the SAE J2716 JAN2010 Single Edge Nibble Transmission (SENT) standard.
| Temperature range | up to 160 °C |
|---|---|
| Output standard | SAE J2716 SENT Rev. 1 |
| Package type | plastic single-ended multi-chip package; 3 in-line leads |
| Output protection | Overvoltage protection up to 16 V |
The default configuration is SENT2010-03.0us-6dn-npp-nsp-A.3.
Programming is performed via the One-Wire Interface (OWI) accessible on pin OUT/DATA.
Yes, it includes a fail-safe non-volatile memory with write protection using a lock bit.
