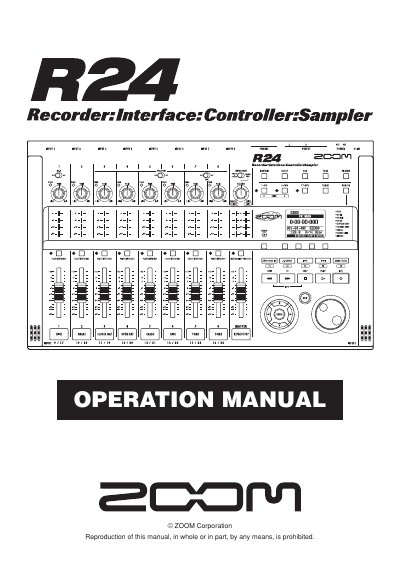

ZOOM R24 Recorder Interface Controller Sampler User Manual
The ZOOM R24 is a portable audio device that functions as a multitrack recorder, a Hi-Speed USB audio interface, and a control surface for DAW software. It supports up to 32 GB SDHC cards and can record up to 8 tracks simultaneously, or 16 tracks when two units are connected via USB.
The device features a comprehensive built-in mixer, diverse effects, and a 24-voice sampler triggered by 8 pads. It includes rhythm and metronome functions, allowing users to create backing tracks and record audio seamlessly. The manual details operation, connections, recording techniques, mixing, and sampler usage.
ZOOM R24 specifications
| Inputs/Outputs | 8 inputs and 2 outputs |
|---|---|
| Sampling Rate | up to 24-bit/96 kHz |
| Effects Sampling Rate | 44.1 kHz |
| Power Source | USB bus |
All ZOOM R24 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What software is used for the examples in this manual?
The manual uses Cubase LE 5 as the primary example for DAW setup and recording.
Is a driver required to use the R24?
Yes, the ZOOM R16/R24 audio driver is essential for using the unit as an audio interface.
Can I connect two R24 units together?
Yes, you can connect two R24s together with a USB cable to allow recording of up to 16 tracks.
From: ZOOM R24 Recorder Interface Controller Sampler User Manual
What type of batteries does the R24 use?
The R24 uses six conventional 1.5-volt AA batteries and cannot recharge them.
From: ZOOM R24 Recorder Interface Controller Sampler User Manual
